C30 Razer Rotor Head

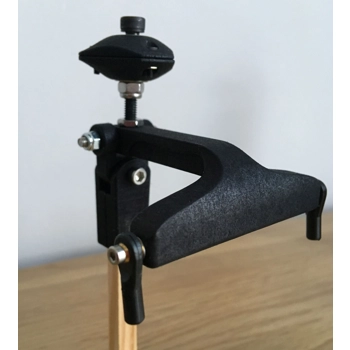

C30 RAZER Rotor Head

A complete rotor assembly for use with light to medium weight autogyros.

This head is a Coolwind designed and manufactured head used in many autogyro builds.

Used in popular builds such as the new RCM&E Gyroo (May 2022 edition), the RCM&E Atom, Cruiser Autogyro, and the Revolver II Autogyro as well as popular builds like the Crane Fly MK1, Fire Fly II, Whippet, Whippeteer and the Burky II plan and can be used in many other home build projects.


This head is made from a tough SLS (Selective Laser Sintered ) nylon material and comes complete with fitted bearings, ball links and screws.

The head features full Roll and Pitch control (ie a Direct Control Head) and requires the use of two servos coupled together with "V-Tail mixing" either on your transmitter or with an external V-tail mixer.

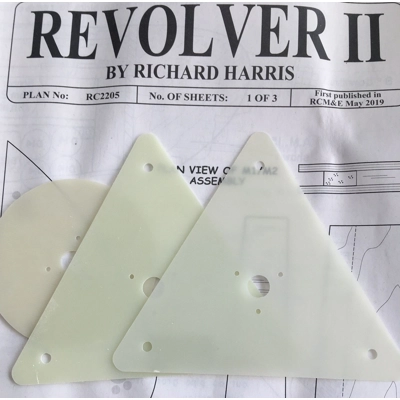

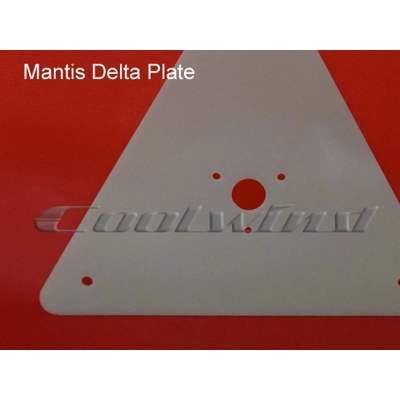

The head features the standard C30 fitting for a fibreglass delta plate (ie 3x2mm holes spaced 120 degrees on a 20mm radius circle. Coolwind provides a wide range of delta plates for specific models, or we can make one to your specification which is suitable for this head.

NEW
Additional/spare Bearing Assemblies can be found here Spare C30 Razer Bearing Assembly
